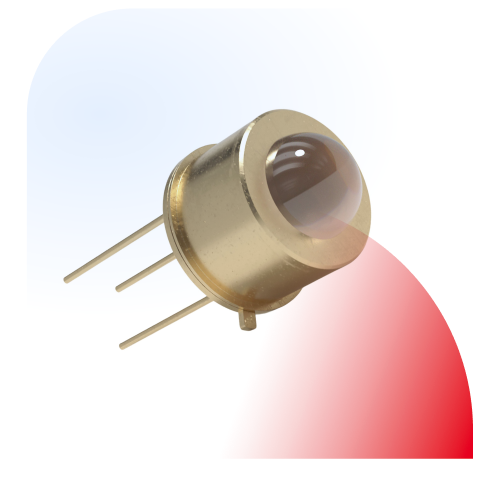

Silanna TO-39 hermetically sealed package is a far UVC emitting device with a peak wavelength of 232nm, 2x Power and 2x Temperature stability then previous version

It is ideal for detection of nitrate (NO3) and nitrite (NO2) in water, and detection of carbon dioxide (CO2) and Nitric Oxide (NO) in gas.

Features

• Wavelength 233nm
• Package type TO-39
• High irradiance intensity up to 4 mW/Sr
• Hermetic seal
• Typical Wattage: 0.12W
• Typical Voltage: 5.8V

The Silanna SN3 Parabolic Lens has a peak wavelength of 255 nm for effective water quality detection of UV254 & TOC (total organic carbon) & COD (chemical oxygen demand) & SS (suspended solid), gas detection for ozone and medical analysers. A high optical output power makes the SN3 Parabolic Lens the perfect choice for applications including chemical and biological analysis, water quality monitoring, gas sensing and liquid chromatography. The 30-degree collimated source design has higher irradiance to enhance resolution for sensing application.

Features

• Wavelength 255nm
• Package size 3.80mm x 3.80mm
• Replacement for 254nm
• Mercury lamp
• Typical Wattage: 0.12W
• Typical Voltage: 5.8V
